Durations ‘Penthouse’ Patio Doors
These superb ‘Penthouse’ large panel patio doors really give great views - offering the maximum possible glass area in a slim and strong aluminium frame. Another nice feature of these doors is that like our standard patio door ALL PANELS CAN SLIDE - there are no fixed panels. Despite their weight the panels slide easily using their high-spec hardware.
Click here to see animation of a two track, two panel Penthouse patio.
Features
- Maximum glass and minimum frame
- Panels may be up to 2.5 metres EACH, therefore a 5 metre opening can be achieved with just 2 panels.
- ALL PANELS CAN SLIDE - no fixed panels.
- 2,3,4 & 6 panels.
- 2 or 3 tracks for maximum widths and flexibility.
- 3 tracks and 3 panels, with all panels sliding, gives around a two-thirds opening.
- Not just for large openings - panels may also be 1 - 1½ metres wide and benefit from this systems superior weather performance and maximum height capabilities.
- Colours include White, Silver Anodised, Brown, Black, plus single RAL and dual RAL colours.

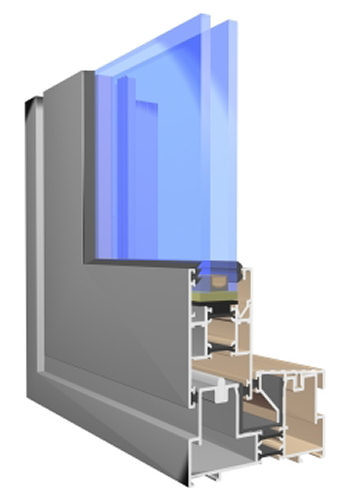

- Polyamide thermal break.
- 200 Kg maximum sash weight.

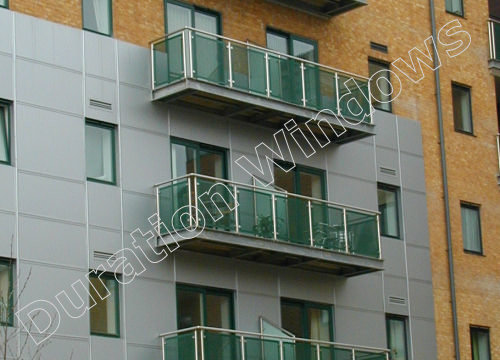

- This patio is designed to take high wind loadings, making it perfect for use on hills, near the coast or in the upper floors of a building - i.e a 3rd floor balcony. (2000Pa, wind resistance)
- 6950mm maximum width - for larger widths please contact us.
- 2700mm maximum height.

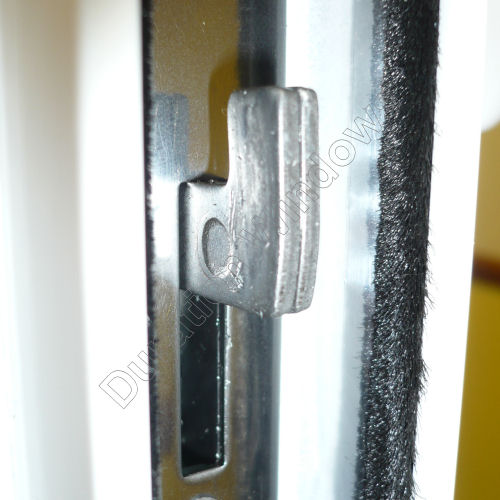

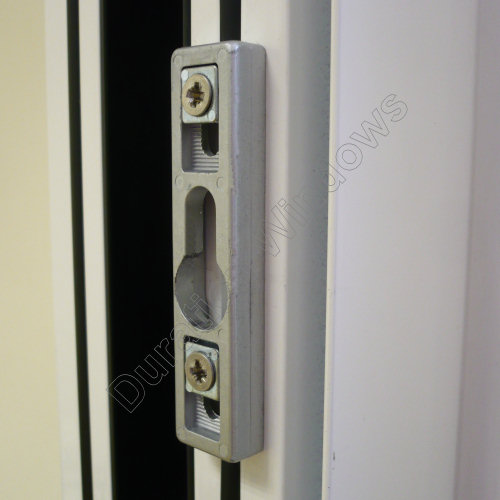

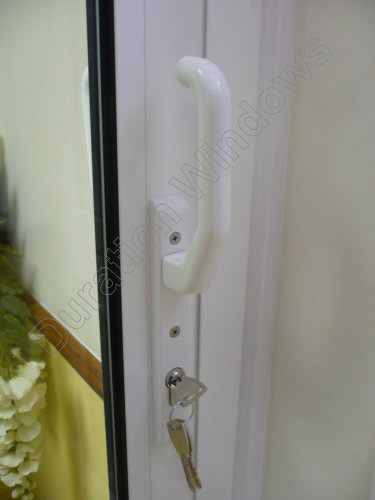

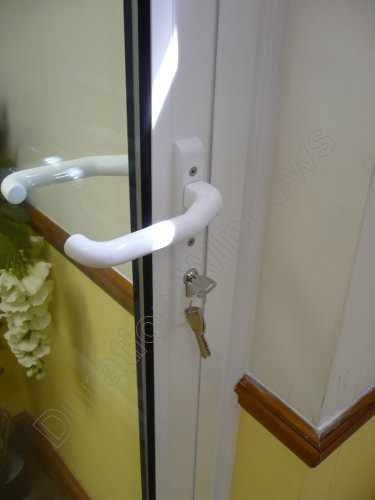

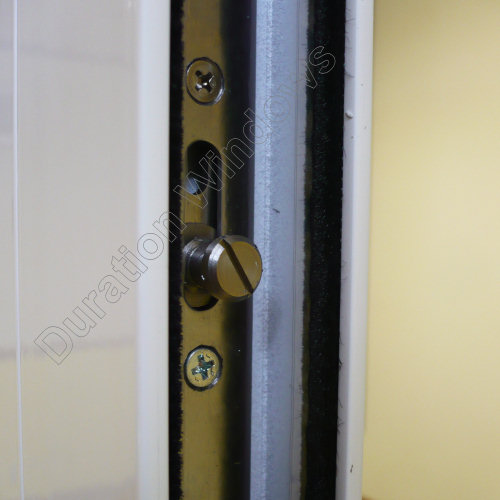

- 5 point high security locking made up of 4 mushroom bolts plus hook lock. Handles park up right - no intrusion into the glass area.

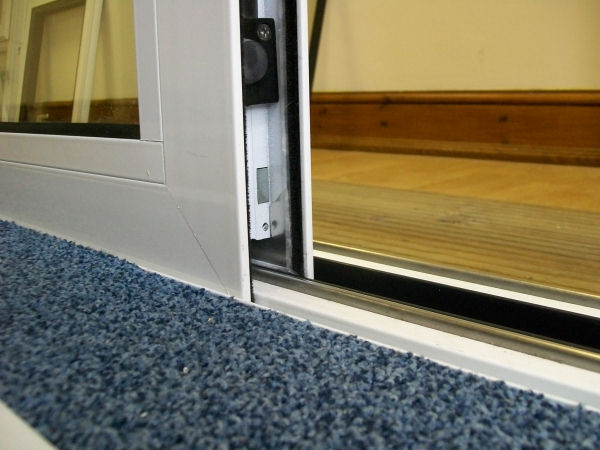

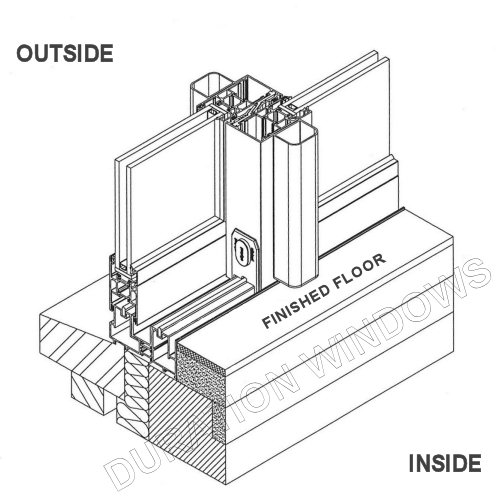

- Threshold may be nearly flush fitted giving minimal step-over.
- Optional head extension for trickle vents.

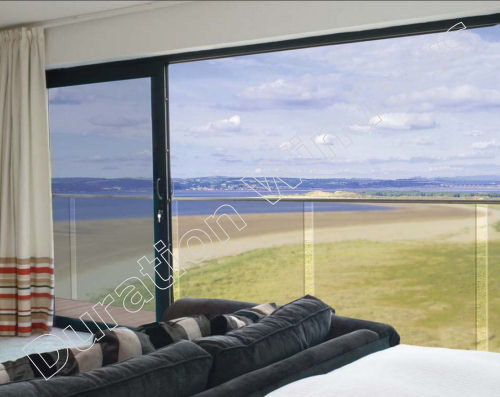

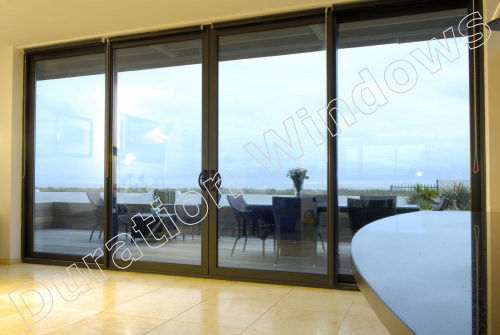

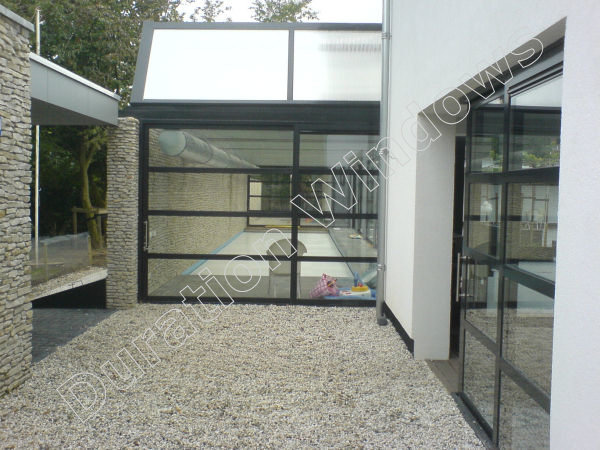

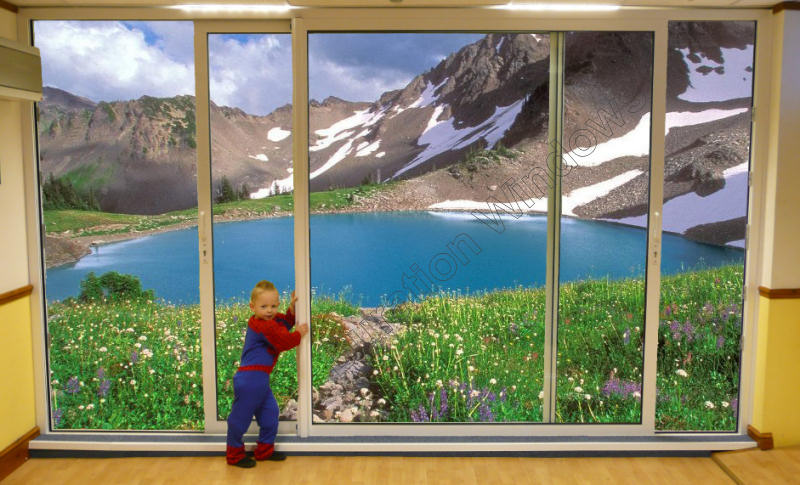

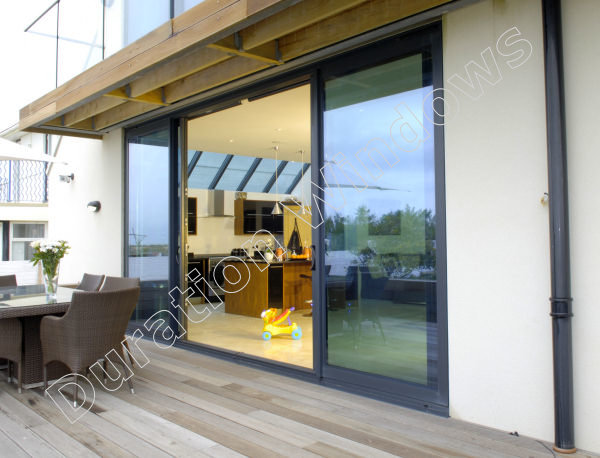

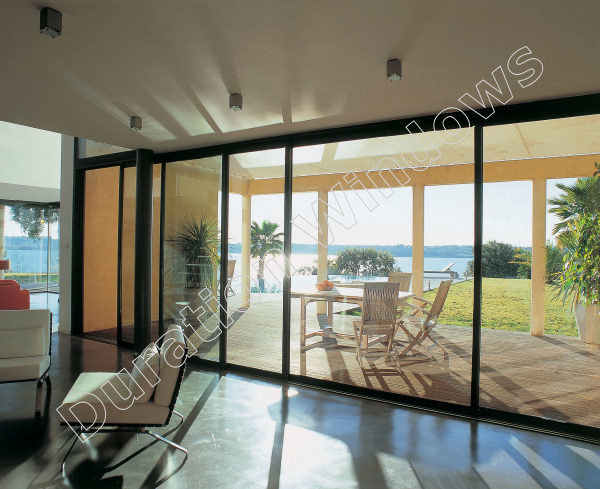

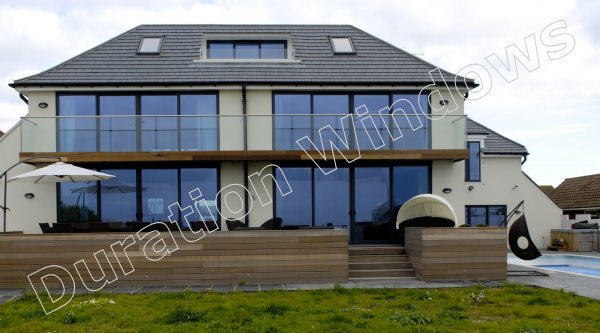

Photos of the Penthouse Patio
A Closer Look At The Penthouse Patio
If you would prefer a supply and fit service, rather than supply only then please contact us. We have a database of around 4500 customers and we will find up to 3 different supply and fit companies in your area.
The Duration patio doors come in many different colours - from standard White, to Browns, Black, Silver Anodised and RAL colours. We regularly supply dual-colour patios where the inside and outside colours are different e.g. black outside and white inside. With so many traditional and modern finishes your patio doors can blend in with your existing buildings structure or make a modern contemporary statement.
The Duration aluminium patio doors can be made up to 6.95 metres wide and up to 2.7 metres high. As a typical opening will be 2.1 metres high - our doors will comfortably fit both standard and higher-than-standard openings. Panels over 1.5 metres are supplied unglazed.
The Duration patio doors come with high performance glass to meet Document L standards, double brush pile and strong 5 point locking. A reinforced interlock is available for extreme wind loadings.
Window Performance
W/M²K
Permeable
Tightness
Resistance
These statistics apply when using: Double-glazing, argon filled (low-E, en=0.05, soft coat), 16mm or more (1.2 Glass - U Value centre Pane*).
Maximum Opening and Flexibility
The sliding panels in our unique ‘Penthouse’ patio doors run on either 2 or 3 tracks. If you choose a 3 panel patio door in a 3 track frame then each panel runs on its own track. Because each panel has its own track all panels can stack at one end. You can see from the diagrams below that with 3 panels the opening is about two-thirds of the total opening, rather than half of the total opening with a two panel door. ‘Penthouse’ patio doors are available in 2, 3, 4 & 6 panels. With our three track system, if you require a cill - you have to use the 225mm cill.
