The sizes detailed below are for guidance only, maximum widths can vary depending on your chosen height and vice versa. If the sizes you require are less than the minimum or exceed our maximum recommended sizes please ask our technical department for advice.
Recommended Sizes | |
---|---|
Min. Width (Single Door) | 550 mm |
Min. Width (Double Door) | 1100 mm |
Max. Width (Single Door) | 1150 mm |
Max. Width (Double Door) | 2300 mm |
Min. Height | 1600 mm |
Max. Height | 2500 mm |
Max. Panel Weight | 80 Kg |
¹ There is not really a minimum height for our commercial doors, however doors under 1900mm are ordered at the customers discretion. Please ask for more information.
Door Performance | |
---|---|
2.0
U Value
W/M²K 300
Air
Permeable 150
Water
Tightness 2000
Wind
Resistance These statistics apply for: |

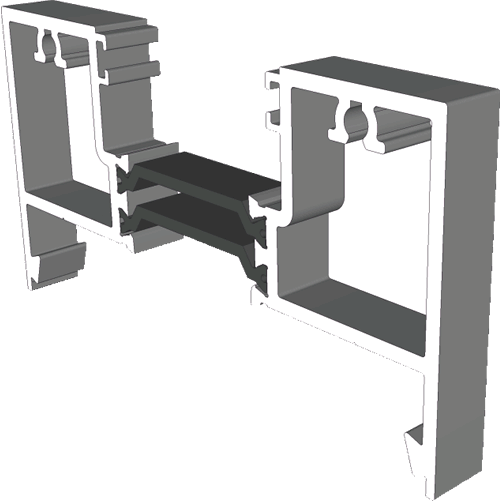

Profiles | |
---|---|
Frame Depth | 100 mm |
Frame Height | 53 mm |
Sight-lines | |
---|---|
Head (Section A) | 156 mm |
Hinge Jambs (B) | 164 mm |
Locking Jamb (C) | 143 mm |
Meeting Stiles (D) | 176 mm |
Optional Transoms (E) | 57 mm |
Optional Midrail (E) | 200 mm |
Ramped Low Threshold (F) | 143 mm |
Low Threshold & Cill¹ (F) | 168 mm |
¹ An optional 25mm projection cill, can be added to protect the brick work under the doors.
Technical Downloads | |
---|---|
(Technical drawings of profiles, combinations & section sight-lines) | 0.9 Mb |
AutoCAD Drawings - Downloads |
---|
Technical drawings can be provided in DWG or DXF format, please contact us. |
Downloads Not Working? |
---|
If you are having problems downloading documents from our website please be patient as it may take a few minutes. Make sure you have the latest version of Adobe Reader - you can download Adobe Reader here for free. Alternatively we can send you the file by email - contact us. |
Specifying - Suitable Applications | |
---|---|
|
