Duraslide 2000 Window Technical

The sizes detailed below are for guidance only, if the sizes you require are less than the minimum or exceed the maximum recommended sizes, please ask. You should also note that the maximum widths can vary depending on your chosen configuration, see the table at the bottom of the page.

Features
Panels Configurations / Opening Styles Min Width Max Width

Min height for all combinations is 500mm. Max height is 1850mm. Styles are all viewed from the outside.

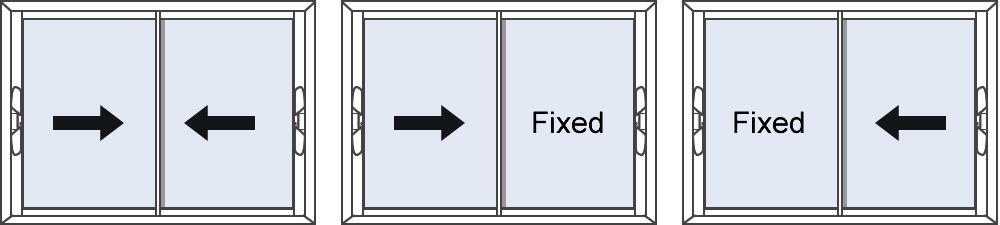

2 Duraslide 2000 800mm 2700mm

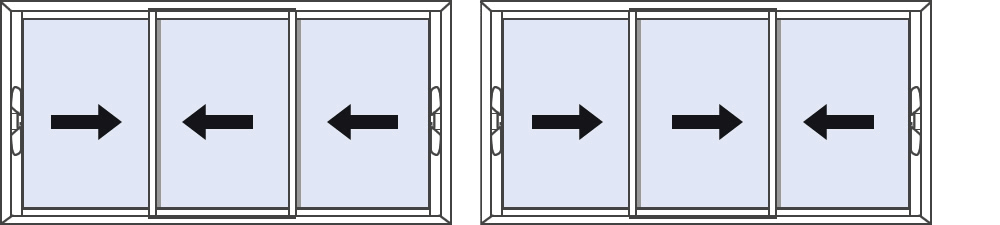

3 Duraslide 2000 1200mm 4050mm

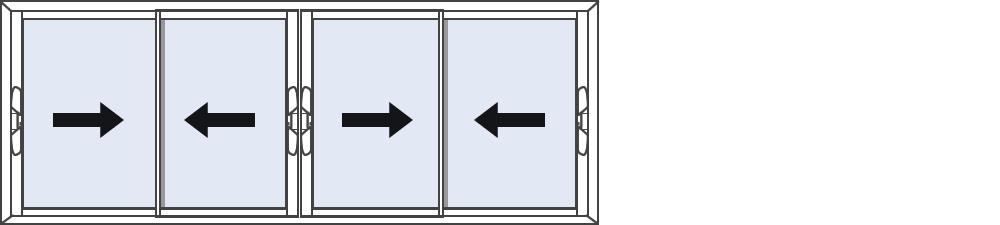

4 Duraslide 2000 1800mm 5400mm

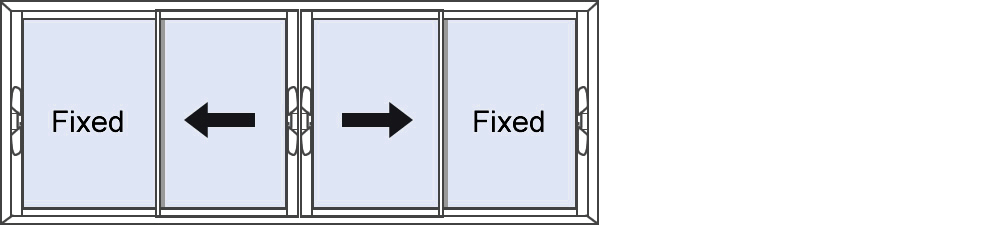

4 Duraslide 2000 1800mm 5400mm

Please remember all sizes are for guidance only and are subject to location of the fitted product. Please contact us for more information.

Specifying - Suitable Applications
  • Can be specified for residential (domestic) / light commercial applications.
  • Meets building regulations for new build. (For Oct 2010)
  • Meets building regulations for replacement and refurbishment projects. (For Oct 2010)
  • Standard Interlock is suitable for use on ground floor / first floor windows up to 1400mm tall.
  • Medium Duty Interlock is suitable for use on the ground floor / upper floors on windows up to 1850mm tall.
  • Heavy Duty Interlock is suitable for use on up to the first floor / upper floors and more exposed areas. Windows up to 2500mm tall.
Technical Downloads
Duraslide 2000
(Technical drawings of profiles, combinations & section sight-lines)
PDF
1.5 Mb
AutoCAD Drawings - Downloads
Technical drawings can be provided in DWG or DXF format, please contact us.

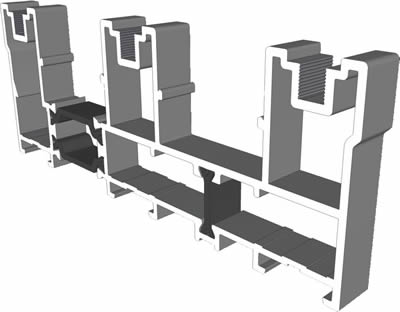

Key Profile Dimensions & Sightlines
Head / Top (mm) 109
Jamb / Side - Locking stile (mm) 103
Jamb / Side - Fixed Panel (mm) TBA
Interlock (mm) 35
Meeting Stiles (mm) 133
Bottom - Excluding Projection Cill (mm) 109
Bottom - Including Projection Cill (mm) 134

Please Note:
The door threshold / cill can be sunk / dropped into the internal floor level for flush fitting.
