Premium Plus Aluminium Window Technical

The sizes detailed below are for guidance only, maximum widths can vary depending on your chosen height and vice versa. If the sizes you require are less than the minimum or exceed our maximum recommended sizes please ask our technical department for advice.

Features
Recommended Sizes - Top hung
Min. Width (mm) 350
Max. Width (mm) 1250
Min. Height (mm) 300
Max. Height (mm) 1250
Max. Weight (Kg) 50
Recommended Sizes - Side hung
Min. Width (mm) 350
Max. Width (mm) 650
Min. Height (mm) 350
Max. Height (mm) 1250
Max. Weight (Kg) 50
Window Performance
Energy
Rating
1.6
U Value
W/M²K
600
Air
Permeable
600
Water
Tightness
2400
Wind
Resistance

These statistics apply for:
These Aluminium Windows exceed Doc. L of the building Regulations by achieving a Window Energy Rating of 'A'. The above statistics apply for: Double-glazing, 90% argon filled Swiss V spacer bar (low-E, en=0.05, soft coat), 20mm or more ( U Value centre Pane - 1.221 W/M2K Glass, g = 0.74 *). Please ask our technical department for information on U-Values, as it will differ depending on your chosen frame, vent and glass. ** Please ask.
Specifying - Suitable Applications
  • Can be specified for domestic and light commercial applications.
  • Meets building regulations for new build. (For Oct 2010)
  • Meets building regulations for replacement and refurbishment projects. (For Oct 2010)
  • Excellent weather performance/ratings in accordance with the requirements of British Standards (BS6375, Part 1: 2004).
Technical Downloads
Premium & Premium Plus Windows
(Technical drawings of dimensions and profiles)
PDF
3.2 Mb
Bay Poles, Corner Posts & Couplers
(Technical drawings of dimensions and profiles)
PDF
1.3 Mb
Measuring Advice
(How to take odd leg measurements - instruction sheet)
PDF
1.5 Mb
Glass Safety
(Where you must use safety glass and what is considered to be safety glass)
PDF
1 Mb
Wood Frames for Windows Leaflet
(Technical drawings of dimensions and profiles)
PDF
1.5 Mb
AutoCAD Drawings - Downloads
Technical drawings can be provided in DWG or DXF format, please contact us.

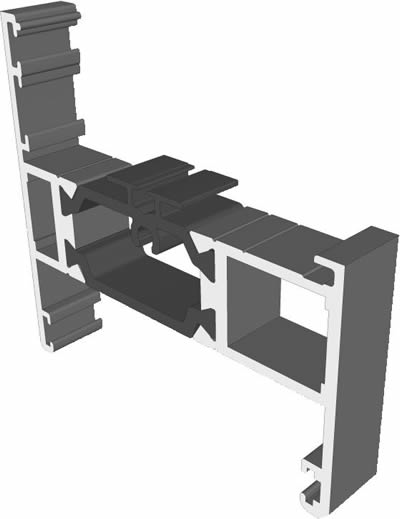

Key Profile Dimensions & Sightlines
Outerframe Depth (mm) 58 or 70
Sash Depth (mm) 58, 63 or 65
Glazed Sealed Units (mm) 28
Projection Cill Height - Optional (mm) 25
Head Extension - Optional (mm) 20
Deep Head Height - Optional (mm) 73
Transom / Mullion - If Required (mm) 57 - 102
Fixed Lites (mm) 43 or 53
Openers & Dummy Vents (mm) 65 - 76

Please Note:
Your actual sight-lines will depend on your chosen vent and outerframe combination. For more details see our Section Identification. Please view this document and then contact our technical department for more information.

Downloads Not Working?
If you are having problems downloading documents from our website please be patient as it may take a few minutes.

Make sure you have the latest version of Adobe Reader - you can download Adobe Reader here for free. Alternatively we can send you the file by email - contact us.
