Internally or Externally Glazed

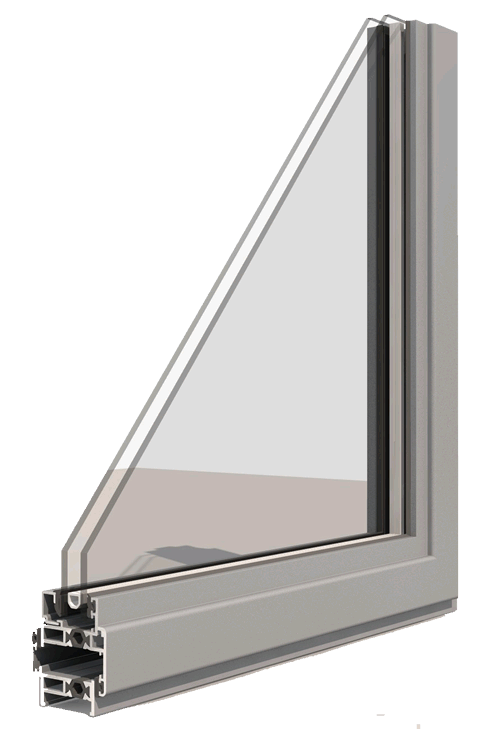

Aluminium Window profiles; Outerframe, Opening Vents and Glazing Beads

The glazing bead is the aluminium profile that secures the sealed units (or glass) into the aluminium window frame or opening vent. When inserting glass into a window system (often referred to as Glazing the window) the glazing bead and wedge gaskets are the last pieces of the window that you fix into place. Some windows are externally glazed (also known as “externally beaded”), while some are internally glazed (also known as “internally beaded”). Some window systems will use a mix of internally glazed and internally glazed sections within a single window.

There have been many arguments over the years as to whether internally glazed or externally glazed windows are better for security. With people using arguments such as: “If you glazed a window from the outside then you can de-glaze it from the outside. Therefore externally beaded windows cannot possibly be secure.” Along with counter arguments such as “Internally beaded PVC windows can simply have their glass units forced in”.

The majority of people in the industry once considered externally glazed windows to be less secure. This is simply due to the fact that internally glazed windows were developed, introduced and advertised as the more secure option. This is no longer the case due to the fact that the majority of externally glazed windows use modern technology, which means that the external glazing beads simply cannot be removed without removing the internal wedge gasket first.

The simple fact is that both internally beaded and externally beaded aluminium windows are secure and the industry standard tests are there to prove it. Therefore if a window system can pass these tests they are deemed to be secure. If a window can pass the British Standard 7950 it is considered to be highly secure. So in the absence of any other even more stringent tests and standards, which should you choose, Internal or external glazed?

Key Points About Internally Beaded Windows:

  • Can make installation far easier by allowing the installer to fit the frame from inside the building, without the need for scaffolding.
  • Once considered to be more secure than externally beaded windows, however due to modern technology and the strength of aluminium, externally beaded aluminium windows are just as secure.

Key Points About Externally Beaded Windows:

  • Externally beaded can provide a slimmer sight-line than internally beaded.
  • From inside, the window may look neater as there are no bead lines.

Both external and internal beads on a single window:
Often you will find that a window system will mix internal and external beads on a single window. This is generally due to the fixed lites being externally glazed. Windows that do not open (otherwise known as fixed lites) are generally glazed from the outside directly into the window frame. Therefore, a window which is made up of an opening sash next to a fixed pane - would be internally beaded on the opening vents and externally beaded on the fixed pane. This gives the best looks and slimmest sight-lines. If you wish to have internally glazed through-out your windows you would normally have to opt for dummy sashes or a double beaded window frame. Dummy sashes provide equal sight-lines, as all the fixed lites are created by fixing opening vents into the outerframe, and are internally glazed.

Find out more about glass and glazing »

This information was taken from the Duration Windows Blog. Scources include, aluminiumtradesupply.co.uk and double-glazing-forum.com.

We use Cookies to ensure that you get the best possible experience on our website

If you continue without changing your settings we will presume that you are happy with the use of all cookies on
this website. You can visit our cookies page to find out more or change your settings at any time.

Royale Stepped Heritage Windows

Royale Steel Replacement Windows

Our Royale Steel Replacement Windows have been specifically designed as a slim-line, secure and thermally efficient replacement for original steel windows. They replicate the traditional styling, slimness and features of traditional steel windows so closely that you will never notice the difference. The outerframe is just 33mm deep, making installation far quicker and simpler when compared to other aluminium look-a-like windows. You will not have to cut back plaster, brick work or existing wooden subframes.

Read More...

Our Royale Windows use the latest inline polyamide thermal break and krypton gas filled sealed units in order to maximise thermal performance. They exceed the current building regulations with a window energy rating (WER) of ‘B’. The window is not only thermally efficient, but they are also highly secure and have passed BS7950 for enhanced security.

Window Features

Emperor Concealed Hinge Aluminium Bi-folding Doors
  • Designed to replicate traditional Steel Windows.
  • Frame depth of just 33mm, providing ease of installation - no cutting back of timber or plaster etc.
  • Very slim sight-lines; fixed lites are 25mm, vents are 50mm.
  • At a much reduced cost when compared to steel windows.

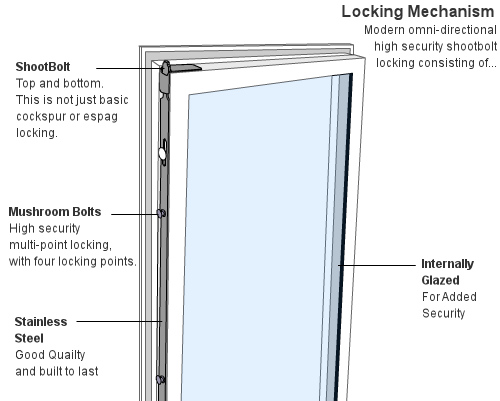

  • Highly secure with our high security shootbolt locking option.

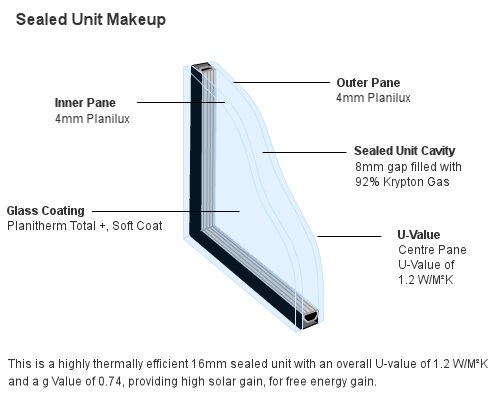

  • The double glazed sealed units are just 18mm deep and are all internally glazed for ease of on site glazing and added security.
Read More...
  • The inline thermal break and krypton gas filled sealed units to maximise thermal performance.
  • Can be installed into existing or new timber subframes or direct to brick.
  • Range of authentic hardware including art deco handles and dummy butt hinges.
  • Suitable for use in period properties, listed buildings, heritage and conservation areas.
  • Exceeds the current Building Regulations for new build and replacement with a WER ‘B’.
  • Finish your installation with our unique colour matched aluminium quad trim.
