Secondary Glazing Hinged Units Technical

The sizes detailed below are for guidance only, maximum widths can vary depending on your chosen height and vice versa. If the sizes you require are less than the minimum or exceed our maximum recommended sizes please ask our technical department for advice.

Features
Butt Hinged Units
Single Butt Hinge
Min. Width (mm) 300
Max. Width (mm) 900
Min. Height (mm) 400
Max. Height (mm) 2100
Double Butt Hinge
Min. Width (mm) 700
Max. Width (mm) 1800
Min. Height (mm) 400
Max. Height (mm) 2100

Please Note: that all sizes provided are recommended sizes only and special request to go under or over these sizes may be possible. However the product may not carry a Duration Guarantee.

Medium Duty Butt Hinged Units (Panel Only)
Top Hung
Min. Width (mm) 300
Max. Width (mm) 1250
Min. Height (mm) 400
Max. Height (mm) 1250
Side Hung
Min. Width (mm) 300
Max. Width (mm) 1250
Min. Height (mm) 400
Max. Height (mm) 1250

Please Note: that all sizes provided are recommended sizes only and special request to go under or over these sizes may be possible. However the product may not carry a Duration Guarantee.

Friction Hinged Units
Top Hung
Min. Width (mm) 350
Max. Width (mm) 1250
Min. Height (mm) 400
Max. Height (mm) 1000
Side Hung
Min. Width (mm) 300
Max. Width (mm) 650
Min. Height (mm) 400
Max. Height (mm) 1250

Please Note: that all sizes provided are recommended sizes only and special request to go under or over these sizes may be possible. However the product may not carry a Duration Guarantee.

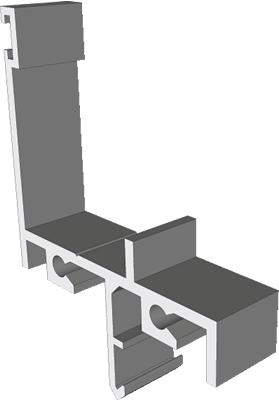

Hinged Secondary Systems - Key Dimensions And Sight-lines
Economy Odd leg
Outerframe Depth (mm) 25.5
Sash Depth (mm) 19.5
Glass (mm) 4 - 6.8
Max. distance to visible glass (mm) 77
Vertical Interlock (mm)² 77
Side Hung
Outerframe Depth (mm)¹ 37
Sash Depth (mm) 19.5
Glass (mm) 4 - 6.8
Max. distance to visible glass (mm) 70
Vertical Interlock (mm)² 77

Please Note: ² Vertical interlock applies to double Butt Hinged units only.
¹ We offer three different sizes of subframe's for our Luxury Subframe system; giving a depth of SF1: 39mm, SF3: 55mm, SF4: 69mm.

Specifying - Suitable Applications
  • Hinged Secondary Glazing is most suited for treating.
  • Can be specified for commercial or domestic applications. (Luxury Subframe being most suited to residential applications due to its aesthetic appeal.)
  • Busy areas where traffic noise is a nuisance - even where double glazing is already fitted.
  • Ideal for use in Listed Buildings, Heritage / Conservation areas and period properties.
  • As a cost effective alternative to replace your existing single glazed windows.
  • Leasehold properties, where changing the existing windows may be uneconomical.
  • Any property where you are unable to modify the existing external windows.
  • Any window that needs noise reduction and / or draught reduction.
