The sizes detailed below are for guidance only, maximum widths can vary depending on your chosen height and vice versa. If the sizes you require are less than the minimum or exceed our maximum recommended sizes please ask our technical department for advice.
Recommended Sizes - Top hung | |
---|---|
Min. Width (mm) | 350 |
Max. Width (mm) | 1250 |
Min. Height (mm) | 300 |
Max. Height (mm) | 1250 |
Max. Weight (Kg) | 50 |
Recommended Sizes - Side hung | |
---|---|
Min. Width (mm) | 350 |
Max. Width (mm) | 850 |
Min. Height (mm) | 350 |
Max. Height (mm) | 1250 |
Max. Weight (Kg) | 50 |
Window Performance | |
---|---|
Energy
Rating 600
Air
Permeable 1200
Water
Tightness 2400
Wind
Resistance These statistics apply for: |
Specifying - Suitable Applications | |
---|---|
|
AutoCAD Drawings - Downloads |
---|
Technical drawings can be provided in DWG or DXF format, please contact us. |

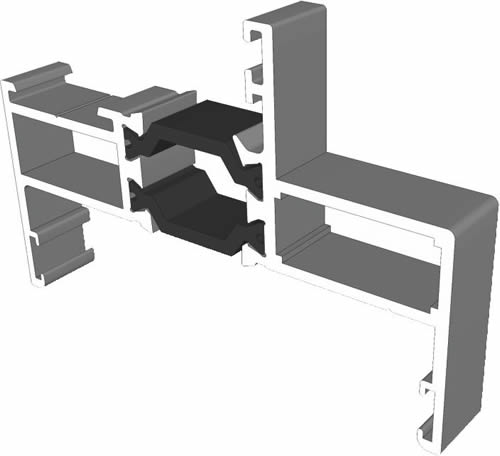

Key Profile Dimensions & Sightlines | |
---|---|
Outerframe Depth (mm) | 47 or 70 |
Sash Depth (mm) | 47 or 58.4 |
Glazed Sealed Units (mm) | 28(4 x 20 x 4) |
Projection Cill Height - Optional (mm) | 25 |
Head Extension - Optional (mm) | 32 |
Transom / Mullion - If Required (mm) | 48 or 58 |
Slight-Lines: Fixed Lites (mm) | 39 or 53.5 |
Slight-Lines: Openers & Dummy Vents (mm) | 65 - 79.5 |
