The sizes detailed below are for guidance only, if the sizes you require are less than the minimum or exceed our maximum recommended sizes - please ask our technical department for advice. Maximum widths can vary depending on your chosen height and vice versa.
The Sizes Below Apply For Single Doors
| Single Doors - Recommended Sizes | |
|---|---|
| Min. Width (mm) | 600 |
| Max. Width (mm) | 900 |
| Min. Height (mm) | 1600 |
| Max. Height (mm) | 2200 |
| Max. Panel Width (mm) | 900 |
| Max. Sash Weight (Kg) | 60 |
| Single Doors - Sight Lines | |
|---|---|
| Head / Top (mm) | 58.5 |
| Jamb / Side (mm) | 58.5 |
| Mullions / Transoms (mm) | 40.5 |
| Bottom - Std Threshold (mm) | 58.5 |

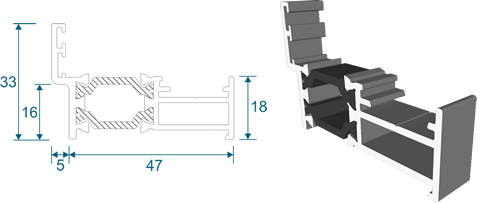

| Std Threshold (mm) | 33 |
| Bottom - Low Thresholds (mm) | N/A |
The Sizes Below Apply For Double Doors
| Double Doors - Recommended Sizes | |
|---|---|
| Min. Width (mm) | 1200 |
| Max. Width (mm) | 1800 |
| Min. Height (mm) | 1600 |
| Max. Height (mm) | 2200 |
| Max. Panel Width (mm) | 900 |
| Max. Sash Weight (Kg) | 60 |
| Double Doors - Sight Lines | |
|---|---|
| Head / Top (mm) | 58.5 |
| Jamb / Side (mm) | 58.5 |
| Mullions / Transoms (mm) | 40.5 |
| Meeting Stiles (mm) | 98.5 |
| Bottom - Std Threshold (mm) | 58.5 |
| Bottom - Low Thresholds Height (mm) | N/A |
See Section Identifications for more information and detailed technical drawings.
| Key Profile Dimensions | |
|---|---|
| Outerframe Depth (mm) | 47 |
| Sash Depth (mm) | 52 |
| Glass Sealed Units (mm) | 24 (4 x 16 x 4) |
| Projection Cill Height - Optional (mm) | 25 |
| Head Extension - if required (mm) | 20 |
| Coupling Bar - if required (mm) | 8 |
 |
|
| Specifying - Suitable Applications | |
|---|---|
|
|
| Technical Downloads | |
|---|---|
(Technical drawings of profiles, combinations & section sight-lines) |  1.7 Mb |
| AutoCAD Drawings - Downloads |
|---|
| Technical drawings can be provided in DWG or DXF format, please contact us. |
| Downloads Not Working? |
|---|
|
If you are having problems downloading documents from our website please be patient as it may take a few minutes. Make sure you have the latest version of Adobe Reader - you can download Adobe Reader here for free. Alternatively we can send you the file by email - contact us.
|
